T75 20ft Cryogenic Liquid Tank Container

Tank Container

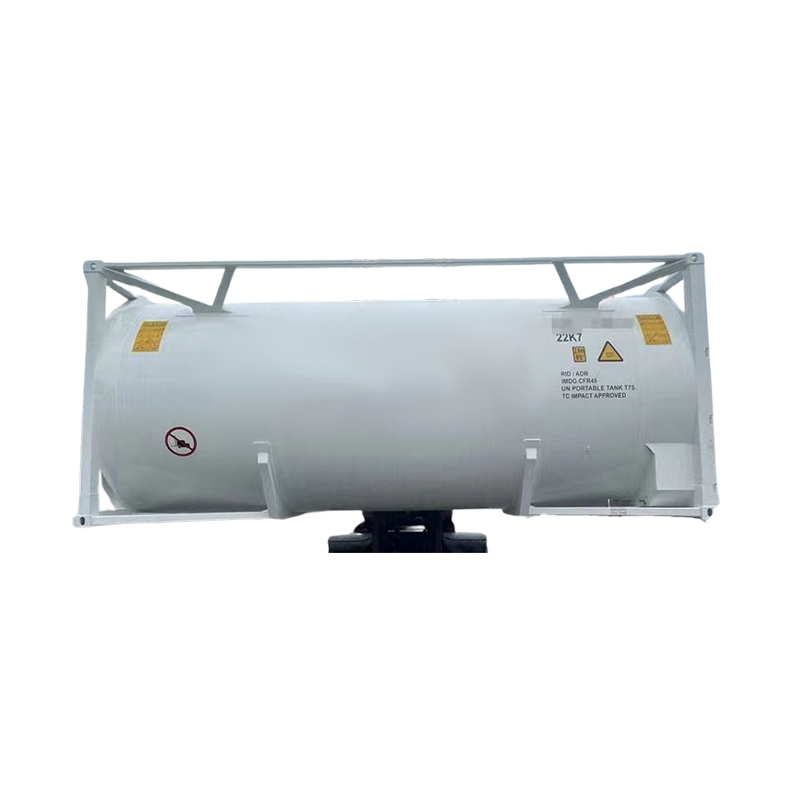

T75 20ft Cryogenic Liquid Tank Container

T75 tank containers are generally used to transport liquids that have special requirements for temperature, pressure and other conditions. These liquids may be some high-purity chemicals or substances that can only exist stably under specific temperature and pressure. For example, some cryogenic liquefied gases or some highly active chemicals that need to be transported under the protection of inert gas.

    Product Introduction

    T75 tank container is a professional equipment used to transport special media such as cryogenic liquefied gas. Generally, the inner tank is made of stainless steel, such as the common 304 stainless steel, which has good corrosion resistance and can adapt to the storage and transportation of various media; the outer shell is mostly made of carbon steel, which reduces costs while ensuring strength. High vacuum multi-layer insulation technology is used to form a narrow gap high vacuum insulation space between the inner container and the outer shell, and a multi-layer insulation reflective screen is wrapped around it. It is also equipped with low-temperature and normal temperature adsorbents to effectively reduce heat transfer, ensure the temperature stability of cryogenic liquids, and reduce the gasification rate. The liquefied gases that can be transported include: liquid oxygen, liquid nitrogen, liquid argon, liquefied natural gas, ethylene, liquid helium, etc.

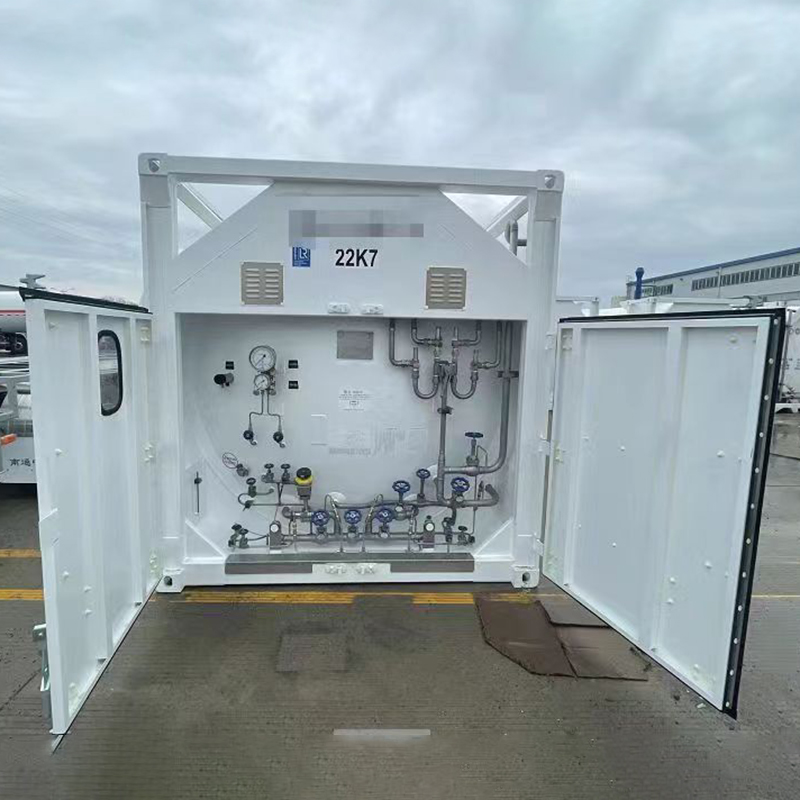

    T75 tank container is also equipped with complete safety devices, mainly safety valves, pressure gauges, inner tank bursting discs, liquid level gauges, and emergency shut-off devices. Our production meets ISO standards and is also certified by classification societies to ensure the safety and reliability of tank containers at sea and during transportation.

    Product Specification

    External Dimension(MM) 6058*2438*2591
    MAWP 2.4MPa
    Tare mass 8450kg
    MPGM 36000kg

    Advantages

    ● Strong thermal insulation performance:
    generally composed of a stainless steel inner tank, a high vacuum multi-layer insulation layer and an outer shell, it can effectively maintain the temperature of cryogenic liquids, reduce heat transfer, and ensure the stability of goods during transportation and storage. For example, when transporting cryogenic liquefied gases such as liquid oxygen and liquid nitrogen, it can keep them within an extremely low temperature range to prevent gasification losses.

    ● High gas purity guarantee:
    Due to its good sealing and stability, compared with other modes of transportation, it can better guarantee the purity of the transported gas, reduce the possibility of impurities mixing, and meet the needs of some industrial production or scientific research applications that have high requirements for gas purity.

    ● Solid and reliable structure:
    The tank body and container frame adopt end arc plates and bottom longitudinal beams to ensure the solidity of the overall structure, which can effectively prevent the tank body from being damaged due to external factors such as collision during transportation and ensure transportation safety.

    FAQ

    What goods can T75 tank containers transport?
    Mainly used to transport liquefied gases, such as liquid oxygen, liquid nitrogen, liquid argon, liquefied carbon dioxide, liquefied natural gas, ethylene, etc.

    What safety devices does the T75 tank container have?
    It is equipped with safety accessories such as safety valves, pressure gauges, liner bursting discs, and may also have control and monitoring devices such as cryogenic valves and analytical valves to ensure safety during transportation.

    What is the design temperature range of the T75 tank container?
    The design temperature range is generally - 196℃ to + 50℃.
