New 40ft High-Cube Certified Reefer Shipping Cargo Container

ISO Standard Container

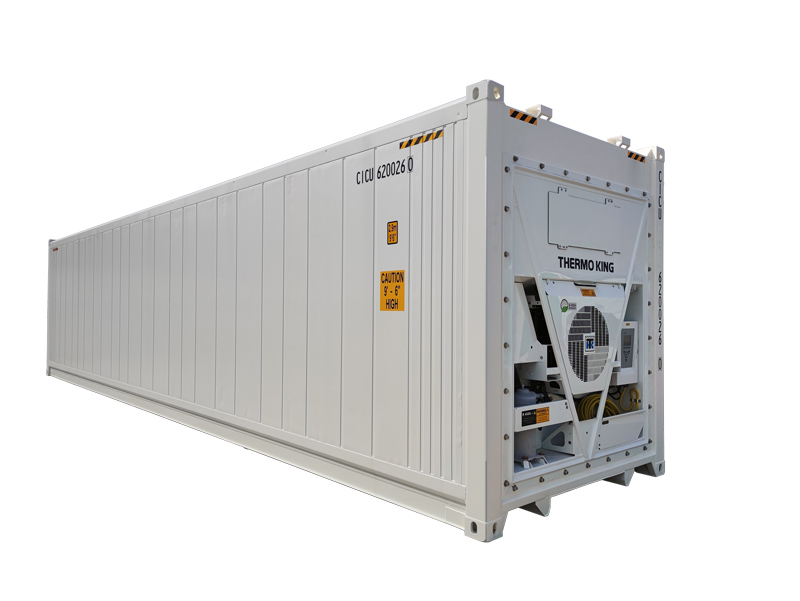

New 40ft High-Cube Certified Reefer Shipping Cargo Container

Size selection: 10ft、20ft、20ft hc、40ft、40ft hc



Thermo King refrigerated containers are mobile, rugged transport or storage containers that typically maintain temperatures between -40°C and +30°C, providing an ideal environment for storing items such as food that need to be kept cold.

    Product Introduction

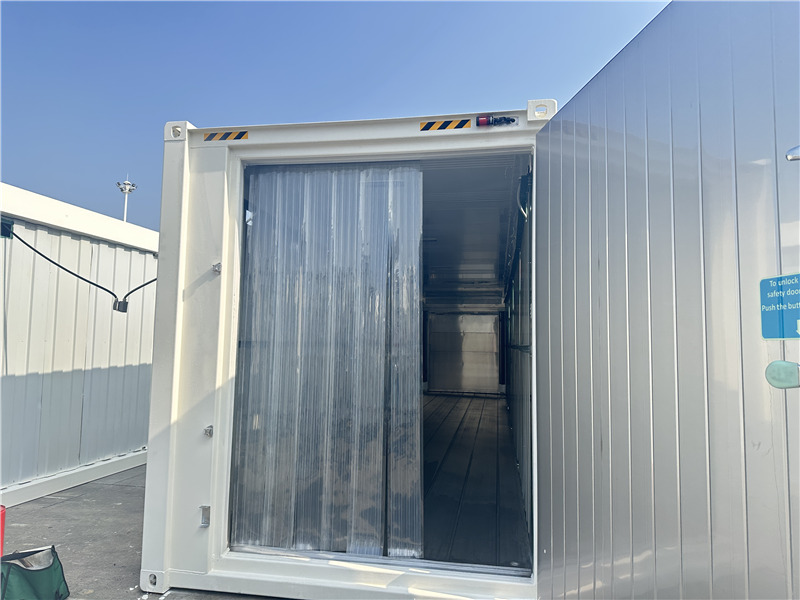

    The body of a refrigerated container is generally made of high-strength steel or aluminum materials, with good sealing and sturdiness, and can withstand various external forces and pressures during transportation, effectively protecting the safety of the goods in the box. The inner wall of the box is usually installed with insulation materials, such as polyurethane foam, to reduce the input of external heat and maintain the stability of the temperature inside the box.

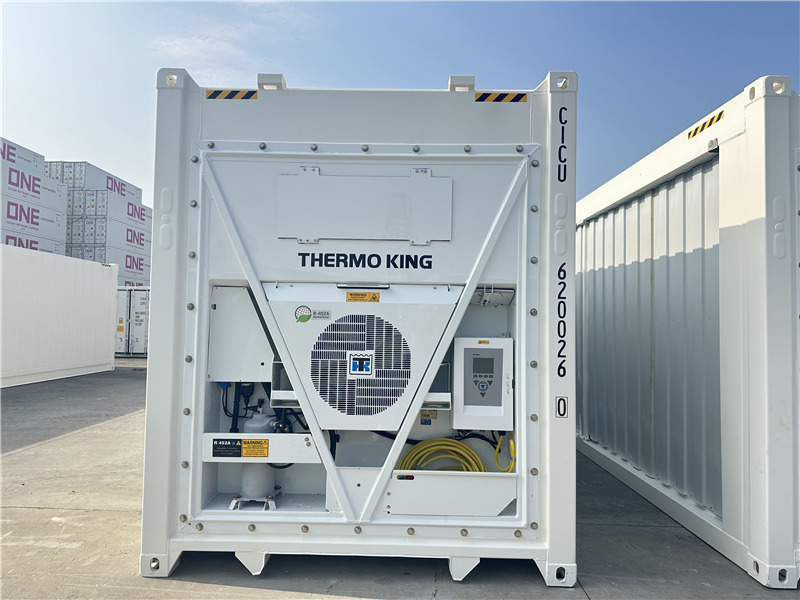

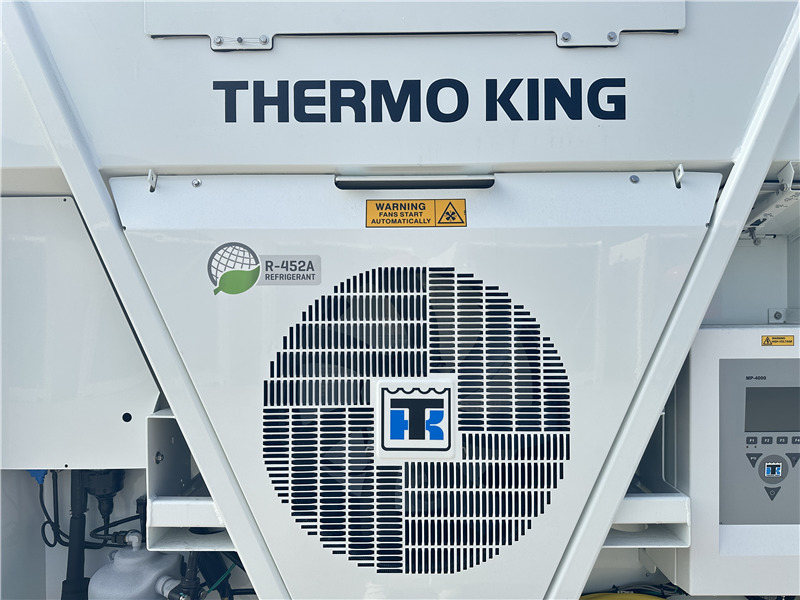

    Thermo King refrigeration unit is the core component of the refrigerated container and is generally installed at the front end of the box. The refrigeration unit consists of a compressor, condenser, evaporator, throttling device, etc., and reduces the temperature inside the box through a refrigeration cycle system. The power and performance of the refrigeration units equipped with refrigerated containers of different models and specifications are different to meet the refrigeration needs of different goods.

    refrigerated
    rf container
    reefer container
    TK-container1
    cold room
    rf

    Product Specification

    External Dimension(MM) 12192*2438*2896
    Internal Dimension(MM) 11590*2294*2554
    Door opening(width) 2290
    Door opening(height) 2569
    Maximum Gross Weight 34000kg   74960lbs
    Maximum Payload 29250kg  64490lbs
    Tare Weight (±2%) 4210kg    9280lbs
    Cooling machine working voltage
    400 to 500 V ac 3∅60 Hz±2.5%
    360 to 460 Vac 3∅50 Hz±2.5%
    Refrigerant R134A、R404A/R452A-4.0kg(8.8lb)
    Internal temperature range -40°C to 30°C (-40°F to 86°F)

    Advantages

    ● Precise temperature control
    Refrigerated containers can accurately control the temperature inside the container. Usually, the temperature can be controlled at any set temperature point between -40℃ and +30℃, with a small error range, generally between ±0.5℃ and ±1℃. This is crucial for the preservation and quality maintenance of goods that require strict temperature control, such as fresh fruits, vegetables, meat, seafood, medicines, etc.

    ● Wide range of applications
    Refrigerated containers are suitable for transporting various types of perishable goods, whether it is food, medicine, flowers, or some special chemical products, as long as the goods have specific temperature requirements, they can be transported in refrigerated containers.

    FAQ

    What's your MOQ?
    1 piece for container.

    Can you customize the container?
    Yes, spray paint or logo, etc.

    Can we choose the cooling unit?
    Sure, you could choose one from Thermo King,Daikin and Carrier.
