40ft High-Cube Side Open Door Reefer Container

Side Open Door Container

40ft High-Cube Side Open Door Reefer Container

Size selection: 20ft、20ft hc、40ft、40ft hc

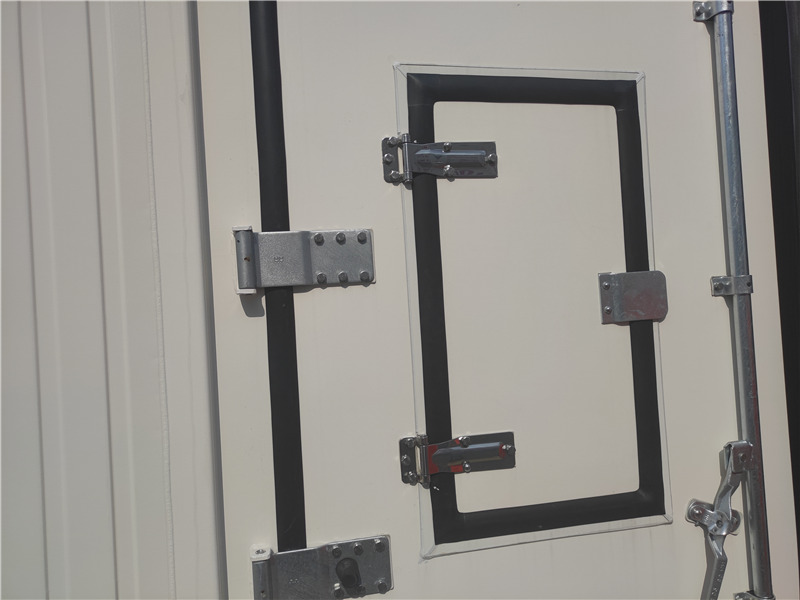

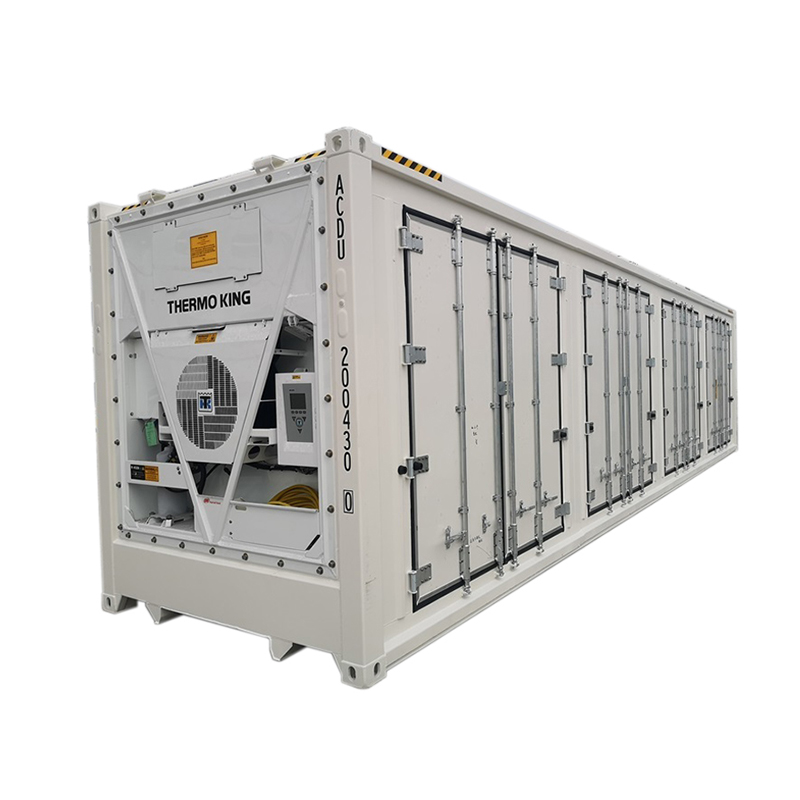

A side-opening container is a container with a special door opening method. The number of doors is generally single or double, which can be determined according to actual needs. The small window on the door ensures the safety of personnel entering and exiting, and can be used for escape in an emergency. Smaller goods can also be delivered through the small window to ensure the temperature inside the container.

    Product Introduction

    In order to ensure the strength and sealing of the side-opening door, the container adopts a reinforced structure design around the door. The door frame is generally made of high-strength steel and is specially treated to enhance its anti-deformation ability. A high-quality sealing strip is installed between the door and the door frame to ensure that rain, dust, etc. can be effectively prevented from entering the box when it is closed.

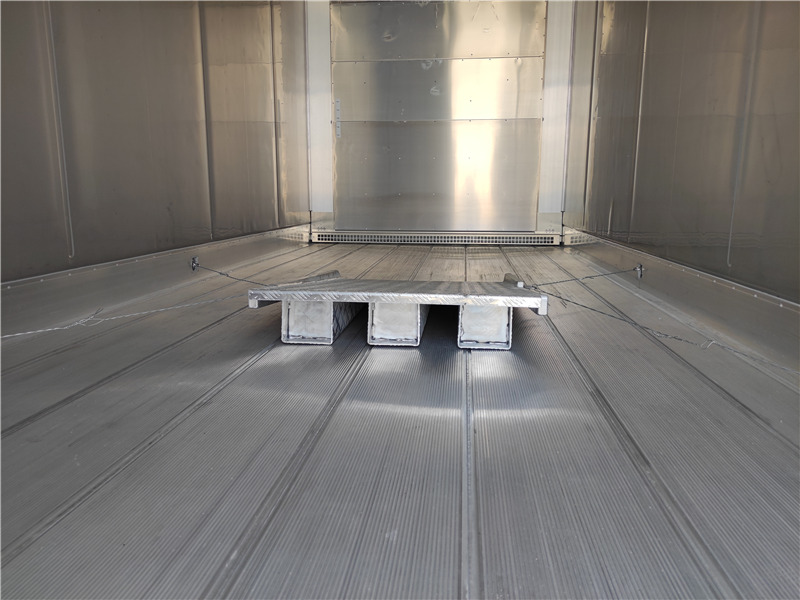

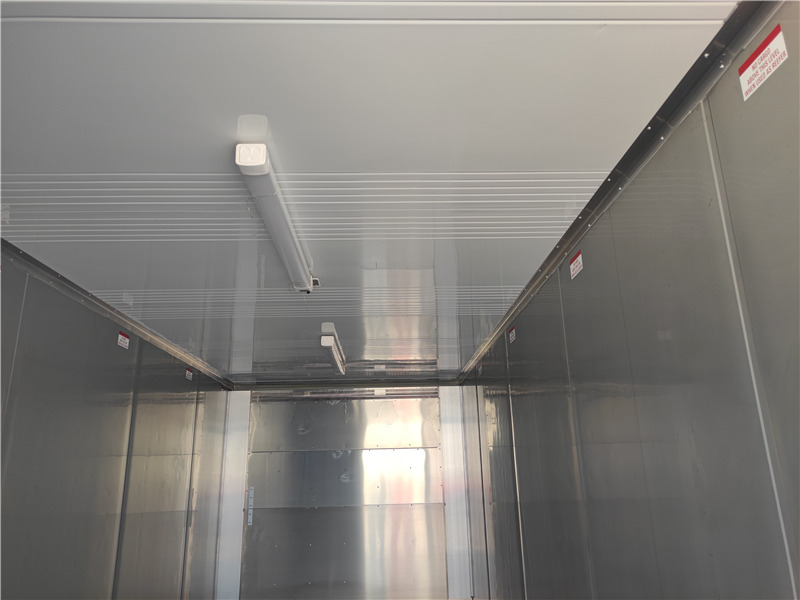

    The internal space layout of the side-opening container is similar to that of an ordinary container, but due to the different positions of the doors, there may be differences in cargo loading and unloading and fixing methods. The interior is usually equipped with devices to fix the cargo, such as corner fittings, lashing rings, etc., to better fix the cargo and prevent displacement during transportation.

    reefer
    refrigerated
    reefer container
    door

    Product Specification

    External Dimension(MM) 12192*2438*2896
    Internal Dimension(MM) 11590*2294*2554
    Door opening(width) 2290
    Door opening(height) 2569
    Maximum Gross Weight 34000kg   74960lbs
    Maximum Payload 29250kg  64490lbs
    Tare Weight (±2%) 4210kg    9280lbs
    Cooling machine working voltage
    400 to 500 V ac 3∅60 Hz±2.5%
    360 to 460 Vac 3∅50 Hz±2.5%
    Refrigerant R134A、R404A/R452A-4.0kg(8.8lb)
    Internal temperature range -40°C to 30°C (-40°F to 86°F)

    Advantages

    ● Improve space utilization:
    When loading and unloading goods of certain special shapes or sizes, side-opening containers can make better use of internal space. For example, for some long goods, they can be placed longitudinally along the side of the container to make full use of the length and height of the container. Compared with loading and unloading from one end, the cargo layout can be arranged more reasonably and the space utilization rate can be improved.

    ● Enhance cargo safety:
    Since the cargo can be loaded and unloaded and fixed more conveniently from the side, the stability and safety of the cargo during transportation are higher. Operators can tie and fix the cargo more directly to ensure that the cargo will not be damaged by shaking or collision during transportation, reducing the risk of cargo loss.

    FAQ

    Can the door size be modified?
    Of course, according to your needs.

    What scenarios are side-opening door boxes more suitable for?
    Special-sized goods and large goods.
